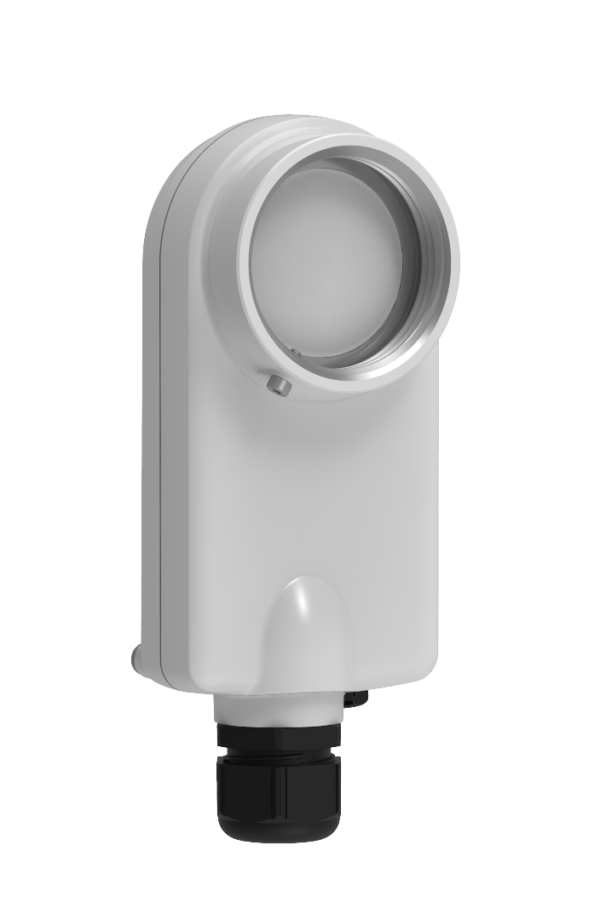

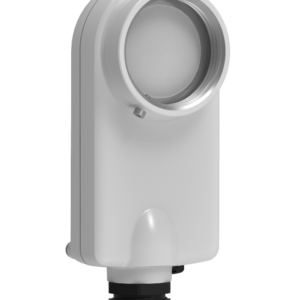

Modular Radio C5x IP67; Modular Radio Max Throughput – PTP: 700 Mbps IP (866 PHY, requires PTP feature key); PTMP: 500 Mbps IP (866 PHY, requires PTMP speed feature key to go faster than 100BASE-T); MIMO and Modulation: 2×2:2 MIMO OFDM, up to 256 QAM; Bandwidth: 20/40/80 MHz channels, tunable to 5 MHz increments for Mimosa SRS and WiFi Interop mode; Frequency Range: PTP/PTMP: 4900–6400 MHz (restricted by country of operation); Max Output Power: 27 dBm; Max Power Consumption: 9.2 W average; 12.9 W max; System Power Method: Passive POE (24-56 VDC); PoE Power Supply: Passive POE compliant, 24-56 V Power over Ethernet supply (not included); RF Connector Type: Mimosa N5-X twist-on; Outdoor Ingress Protection Rating: IP67; Gigabit Ethernet: 10/100/1000-Base-T; QoS: Supports 4 pre-configured QoS levels; Mimosa. MIMOSA_C5X-IP67.
